SQL: Joins, Subqueries, and Views

Agenda

1. Relational Joins
   • Inner, Left, Right, Full, Cross, and Self Joins
2. Subqueries
   • Scalar, Multi-row, and Correlated
3. Database Views
   • Virtual tables and Materialized Views

Today we will cover three tools for organizing relational queries: joins, subqueries, and views.

Joins

• Joins

• Subqueries

• Views

• Glossary

• Activity Solutions

The Concept of Joins

To combine data from two or more tables, we use a common column (usually a Foreign Key).

graph LR
    A[Table A] --- B{Join Condition}
    C[Table B] --- B
    B --> D[Combined Result Set]

    classDef table fill:#0072B2,stroke:#333,stroke-width:2px,color:#fff
    classDef logic fill:#E69F00,stroke:#333,stroke-width:2px,color:#000
    classDef result fill:#009E73,stroke:#333,stroke-width:2px,color:#fff

    class A,C table
    class B logic
    class D result

Joins are the heart of relational databases. We look for a “bridge” between tables to pull related information together in a single result set.

Inner Join

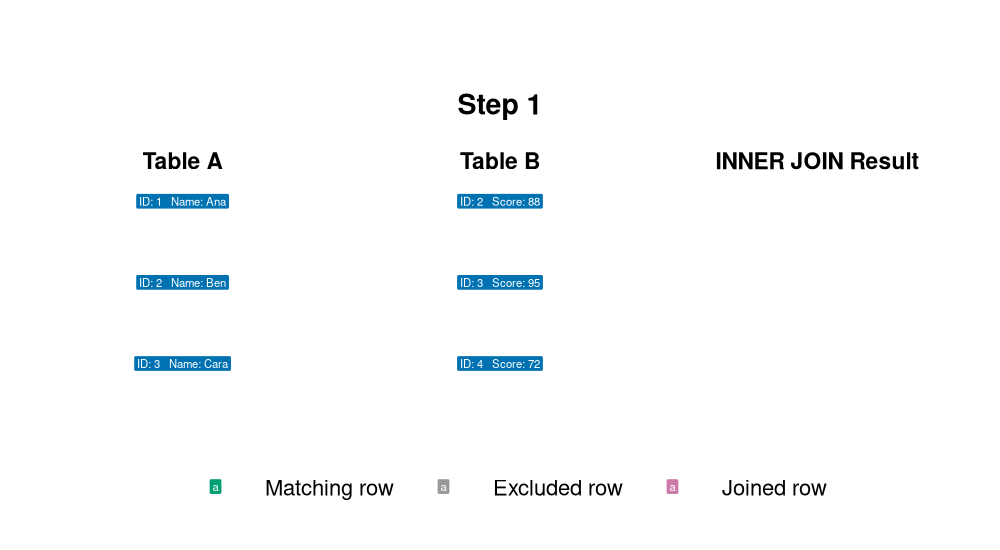

Inner Join

Returns records that have matching values in both tables.

SELECT
    employees.name,
    departments.dept_name
FROM employees
INNER JOIN departments
ON employees.dept_id = departments.id;

• Only matches are returned.
• If an employee has no department, they are excluded.
• If a department has no employees, it is excluded.

The Inner Join is the most common join. Think of it as the “intersection” of two sets. If there is no overlap, you get nothing.

Left Join

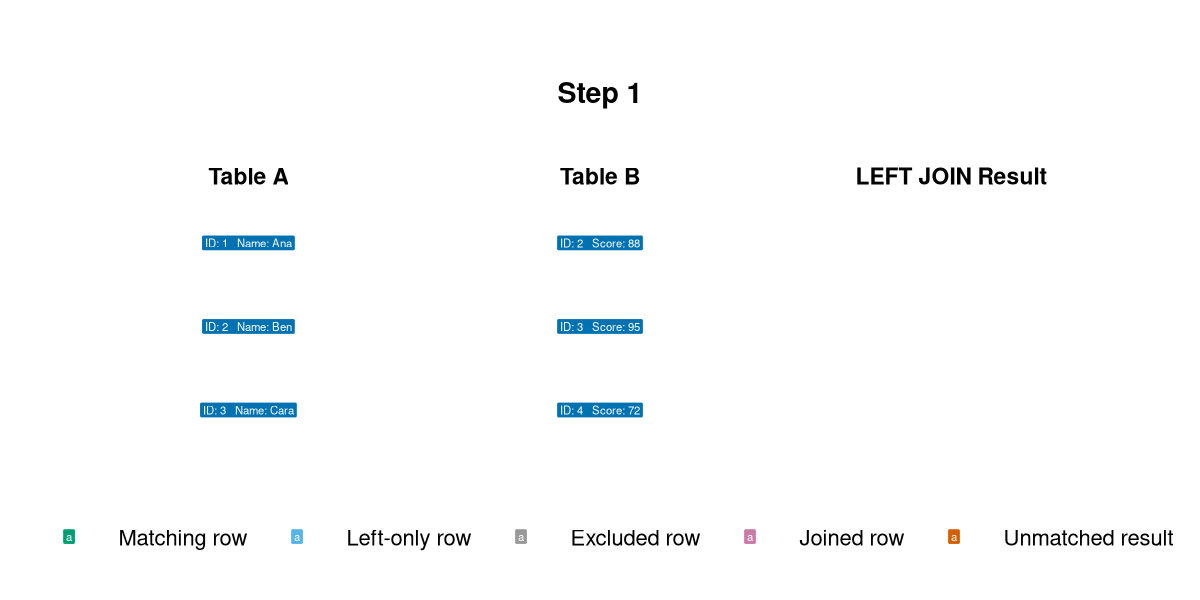

Left Join

Returns all records from the left table, and the matched records from the right table.

SELECT
    employees.name,
    departments.dept_name
FROM employees
LEFT JOIN departments
ON employees.dept_id = departments.id;

• If there is no match, the result is NULL on the right side.
• Useful for finding “missing” relationships.

The Left Join is crucial when you want to keep your primary list intact, regardless of whether the second table has matching data.

Right Join

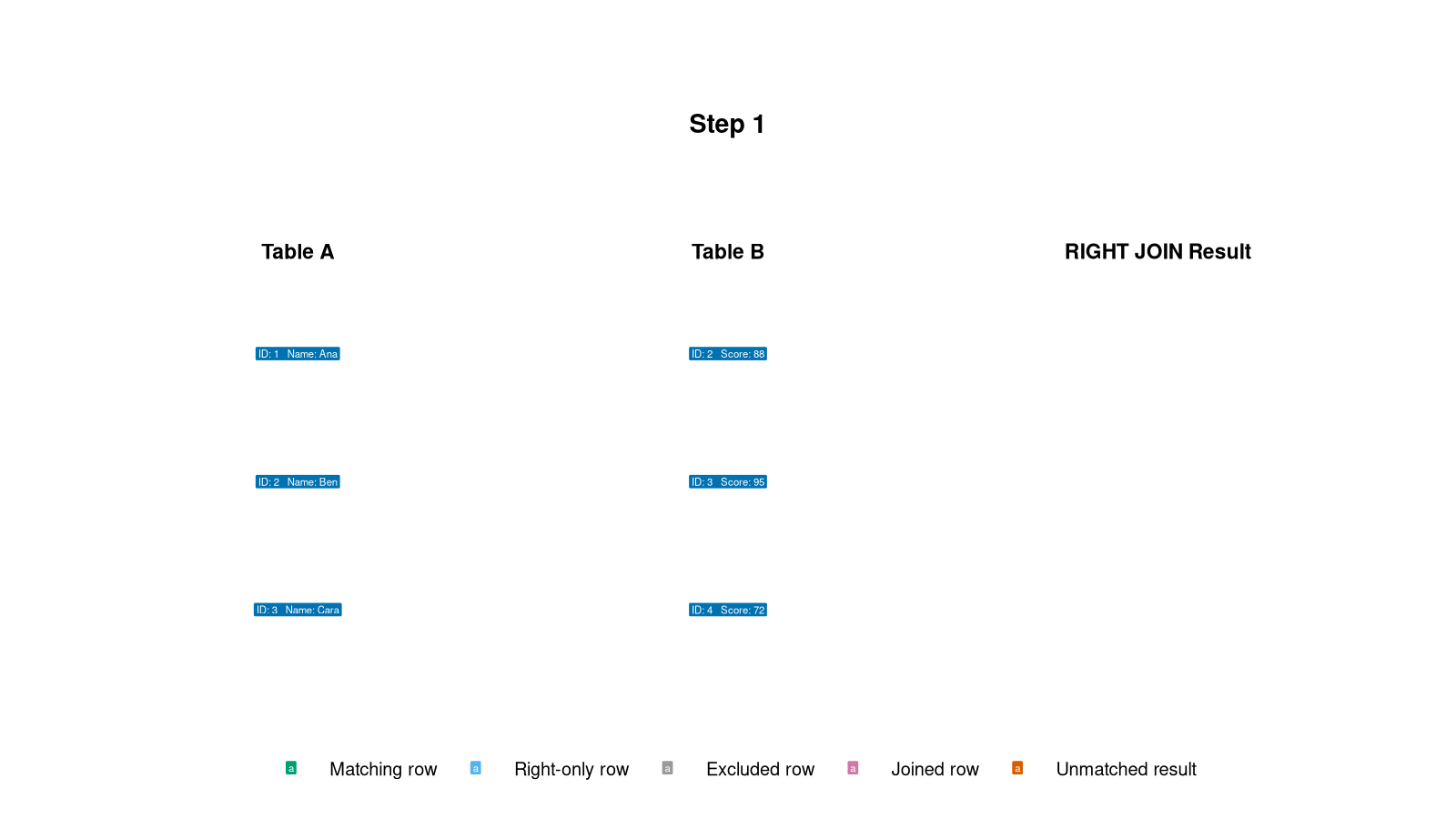

Right Join

Returns all records from the right table, and the matched records from the left table.

SELECT
    employees.name,
    departments.dept_name
FROM employees
RIGHT JOIN departments
ON employees.dept_id = departments.id;

• The opposite of a Left Join.
• Includes all departments, even those without employees.
• Requires SQLite 3.39.0 or later.

While Right Join exists, many developers prefer using Left Join and simply switching the order of the tables to keep their logic reading from left to right.

Full Join

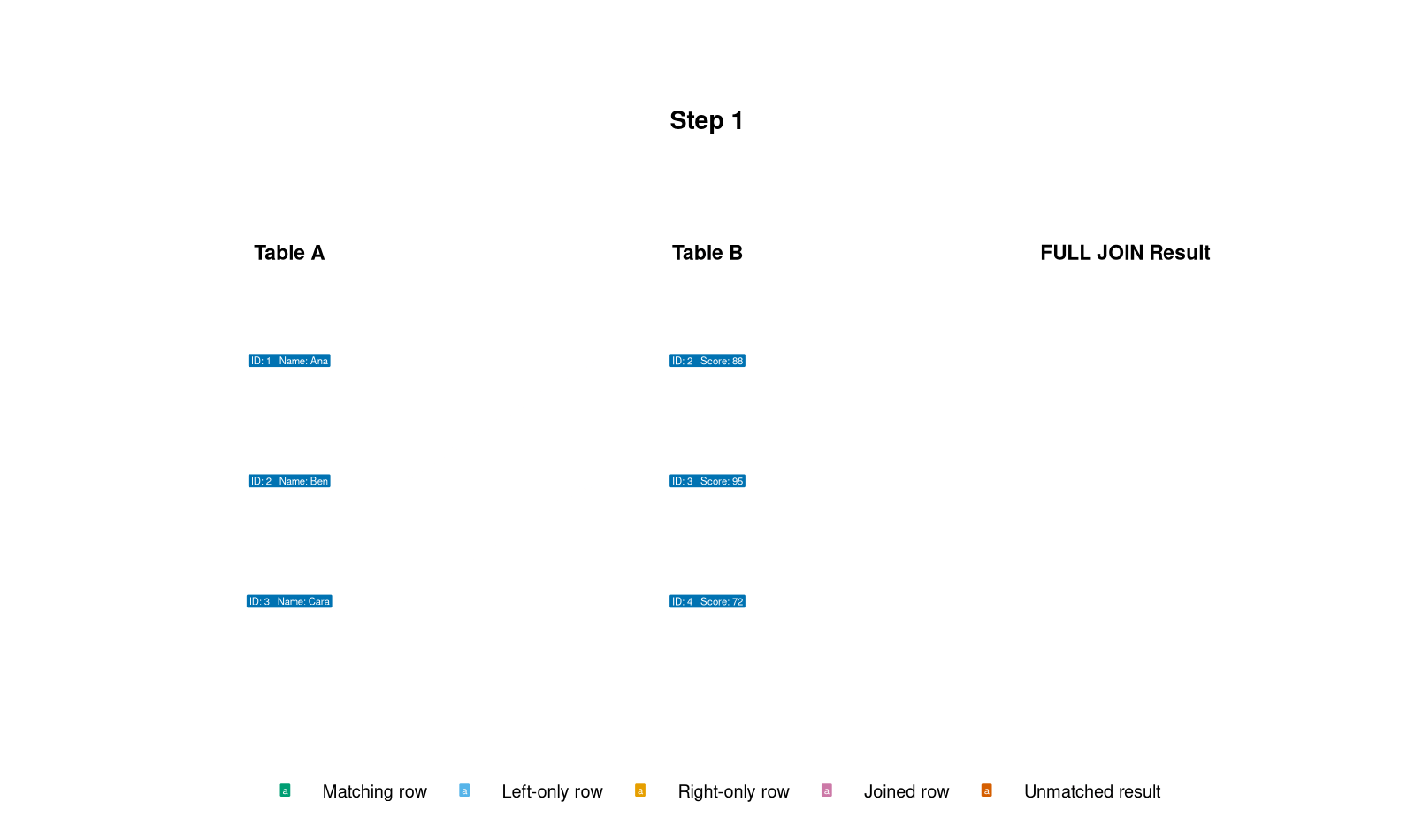

Full Join

Returns all records when there is a match in either the left or right table.

SELECT
    employees.name,
    departments.dept_name
FROM employees
FULL OUTER JOIN departments
ON employees.dept_id = departments.id;

• Combines the effect of Left and Right joins.
• Provides a complete picture of all data in both tables.
• Requires SQLite 3.39.0 or later.

Full Outer Join is used when you want to see everything from both sides, showing where matches exist and where they don’t.

Self Join

A join where a table is joined with itself.

SELECT
    e1.name AS Employee,
    e2.name AS Manager
FROM employees AS e1
INNER JOIN employees AS e2
ON e1.manager_id = e2.id;

• Requires table aliasing (e1, e2).
• Used for hierarchical data (e.g., Employee -> Manager).

Self joins are essential for organizational charts or any data structure where a row has a relationship with another row in the same table.

Activity: Joins

Use the Chinook database. Write one query for each task.

1. Album catalog: Join Artist and Album. Return the artist name as ArtistName and album title as AlbumTitle. Sort by artist and album title. Match bY ArtistID.
2. Long tracks: Join Track and Genre. Return TrackName, GenreName, and Milliseconds for tracks longer than 300,000 milliseconds. Show the longest tracks first. Match bY GenreID.
3. Customer invoice coverage: Use a left join between Customer and Invoice. Return each customer’s ID, first name, last name, and invoice count. Keep customers who have no invoices. Match bY CustomerID.

Allow students about 15 minutes. Encourage them to identify the matching key columns before they write each query. Solutions appear at the end of the deck.

Subqueries

• Joins

• Subqueries

• Views

• Glossary

• Activity Solutions

Subqueries

A subquery is a query nested inside another query.

graph TD
    Outer[Outer Query / Main Query] -->|Contains| Inner[Inner Query / Subquery]
    Inner -->|Returns Data| Outer

    classDef outer fill:#0072B2,stroke:#333,color:#fff
    classDef inner fill:#E69F00,stroke:#333,color:#000

    class Outer outer
    class Inner inner

Subqueries allow for complex, multi-step data retrieval in a single statement. They can be used in SELECT, FROM, WHERE, and HAVING clauses.

Scalar Subqueries

A subquery that returns exactly one value (one row, one column).

SELECT name, salary
FROM employees
WHERE salary > (SELECT AVG(salary) FROM employees);

• Returns a single value for comparison.
• Often used in SELECT or WHERE.

Scalar subqueries are very efficient for comparing individual rows against an aggregate value, like finding people paid more than the average.

Multi-row Subqueries

Subqueries that return a list of values (one column, multiple rows).

SELECT name
FROM employees
WHERE dept_id IN
  (SELECT id FROM departments WHERE location = 'New York');

• Common operators include IN, ANY, ALL, and EXISTS.
• Used to filter against a dynamic list.
• SQLite supports IN and EXISTS, but not the SQL-standard ANY and ALL operators directly.

Multi-row subqueries are powerful for filtering one table based on a set of criteria found in another table without using a traditional JOIN.

Activity: Subqueries

Use the Chinook database. Write one query for each task.

1. Longer than average: Return the name and length in milliseconds of every track that is longer than the average track length. Use a scalar subquery.
2. Rock and Metal tracks: Return the track name and unit price for tracks whose genre is either Rock or Metal. Use a multi-row subquery with IN.

Allow students about 12 minutes. Ask them to run each inner query by itself before placing it inside the outer query.

Views

• Joins

• Subqueries

• Views

• Glossary

• Activity Solutions

Views: Definition

A View is a “virtual table” based on the result-set of an SQL statement.

• It does not store data itself (unless it is a Materialized View).
• It is a stored query.
• It acts as a window into your real tables.

Views are not actual tables. They are saved queries that look and behave like tables.

Why use Views?

1. Security: Hide sensitive columns (like salaries or SSNs) by creating a view that only shows non-sensitive info.
2. Simplicity: Simplify complex joins into a single “virtual” table.
3. Consistency: Standardize how specific logic (like “Active Customers”) is calculated across the organization.

Instead of writing a 50-line JOIN query every time, you can write it once, save it as a view, and then just SELECT * FROM my_view.

Creating and Using Views

-- Creating a view
CREATE VIEW active_employee_contact AS
SELECT name, email, phone
FROM employees
WHERE status = 'Active';

-- Using the view
SELECT * FROM active_employee_contact;

• You can use SELECT, JOIN, and WHERE on a view just like a table.

Once the view is created, it becomes part of your database schema for all users with permission to access it.

Materialized Views

Unlike standard views, Materialized Views actually store the data physically.

• Pros: Extremely fast for heavy calculations or large aggregations.
• Cons: The data can become “stale” (outdated) and must be refreshed.
• SQLite note: SQLite does not provide native materialized views.

-- Refreshing a materialized view (syntax varies by DB)
REFRESH MATERIALIZED VIEW sales_summary;

Use Materialized Views for reporting/dashboards where the data doesn’t need to be second-by-second real-time, but speed is critical.

Activity: Views

Use the Chinook database to build and query a reusable customer summary.

1. Create a view named customer_invoice_summary that returns each customer’s ID, first name, last name, and country. Include the number of invoices as InvoiceCount and the total amount spent as TotalSpent.
2. Query the view to show the 10 customers with the highest TotalSpent.

Allow students about 12 minutes. Remind them that a standard view stores the query rather than a separate copy of its results.

Glossary

• Joins

• Subqueries

• Views

• Glossary

• Activity Solutions

Glossary: Query Commands

Command	Purpose
SELECT	Chooses the columns or calculated values to return.
FROM	Identifies the source table, view, or subquery.
WHERE	Filters individual rows before grouping.
GROUP BY	Combines rows that share the same values for aggregate calculations.
HAVING	Filters groups after GROUP BY.
ORDER BY	Sorts the result in ascending or descending order.
LIMIT	Restricts the number of rows returned.
AS	Assigns a temporary alias to a column, table, or calculated value.

Glossary: Joins

Command or term	Purpose
JOIN / INNER JOIN	Returns rows with matching values in both tables.
LEFT JOIN	Returns every row from the left table and matching rows from the right table.
RIGHT JOIN	Returns every row from the right table and matching rows from the left table.
FULL OUTER JOIN	Returns matched rows plus unmatched rows from both tables.
CROSS JOIN	Returns every possible pairing of rows from two tables.
ON	States the condition used to match rows.
Self join	Joins a table to itself by using separate table aliases.
NULL	Represents a missing or unknown value, including an unmatched outer-join value.

Glossary: Subqueries and Views

Command or term	Purpose
Subquery	Places one query inside another query.
AVG()	Calculates an arithmetic mean and can supply a scalar subquery value.
COUNT()	Counts rows or non-null values.
SUM()	Adds numeric values.
ROUND()	Rounds a numeric value to a specified number of decimal places.
IN	Tests whether a value occurs in a list returned by a subquery.
EXISTS	Tests whether a subquery returns at least one row.
ANY / ALL	Compare a value with some or every value from a subquery. SQLite does not support these operators directly.
CREATE VIEW	Saves a query as a virtual table.
DROP VIEW	Removes a view definition.
REFRESH MATERIALIZED VIEW	Updates stored materialized-view results in systems that support the command. SQLite does not.

Activity Solutions

• Joins

• Subqueries

• Views

• Glossary

• Activity Solutions

Joins Activity: Solution 1

SELECT
    ar.Name AS ArtistName,
    al.Title AS AlbumTitle
FROM Artist AS ar
INNER JOIN Album AS al
    ON ar.ArtistId = al.ArtistId
ORDER BY ar.Name, al.Title;

Joins Activity: Solution 2

SELECT
    t.Name AS TrackName,
    g.Name AS GenreName,
    t.Milliseconds
FROM Track AS t
INNER JOIN Genre AS g
    ON t.GenreId = g.GenreId
WHERE t.Milliseconds > 300000
ORDER BY t.Milliseconds DESC;

Joins Activity: Solution 3

SELECT
    c.CustomerId,
    c.FirstName,
    c.LastName,
    COUNT(i.InvoiceId) AS InvoiceCount
FROM Customer AS c
LEFT JOIN Invoice AS i
    ON c.CustomerId = i.CustomerId
GROUP BY c.CustomerId, c.FirstName, c.LastName
ORDER BY InvoiceCount, c.LastName, c.FirstName;

Subqueries Activity: Solution 1

SELECT Name, Milliseconds
FROM Track
WHERE Milliseconds > (
    SELECT AVG(Milliseconds)
    FROM Track
)
ORDER BY Milliseconds DESC;

Subqueries Activity: Solution 2

SELECT Name, UnitPrice
FROM Track
WHERE GenreId IN (
    SELECT GenreId
    FROM Genre
    WHERE Name IN ('Rock', 'Metal')
)
ORDER BY Name;

Views Activity: Solution 1

CREATE VIEW customer_invoice_summary AS
SELECT
    c.CustomerId,
    c.FirstName,
    c.LastName,
    c.Country,
    COUNT(i.InvoiceId) AS InvoiceCount,
    ROUND(SUM(i.Total), 2) AS TotalSpent
FROM Customer AS c
INNER JOIN Invoice AS i
    ON c.CustomerId = i.CustomerId
GROUP BY
    c.CustomerId,
    c.FirstName,
    c.LastName,
    c.Country;

Views Activity: Solutions 2 and 3

-- Ten customers with the highest total spending
SELECT *
FROM customer_invoice_summary
ORDER BY TotalSpent DESC
LIMIT 10;

-- USA customers who spent more than $40
SELECT *
FROM customer_invoice_summary
WHERE Country = 'USA'
  AND TotalSpent > 40
ORDER BY TotalSpent DESC;
